INSTALLATION OF 1999 MAZDA TYPE-RS/RZ REAR BRAKES
1999 Mazda rear calipers with Precision Brake 2 piece rear rotors
Have you installed bigger front brakes? Probably need to install bigger rear brakes as well.
Installing just "bigger" front brakes will certainly help with reliability and fade
resistance on the track but it doesn't do the brake bias any good at all.
In fact, it is possible with the upset brake bias, braking distances will be longer
than the original setup using the smaller brakes! Although one will argue that at the
threshold of brake lockup the ABS system takes over making lockup of one end of the car
over the other not really and issue. But brake bias also has a big effect on how
the car handles when braking just under the lockup threshold. So there is the primary
issue of realigning the brake bias by upgrading the rear brakes. There is also the
issue of reliability and fade - same as with the fronts. Bigger rotors with more
mass and better cooling are more capable of dissappating heat and thereby reducing
fade and the propensity for rotor cracking. Recently, at a track notorious for being
hard on brakes, I cracked both left and right rear *slotted* rotors in two places
each. I've cracked rear rotors before but not slotted rotors and not in two places!
Time for some upgraded rear brakes.

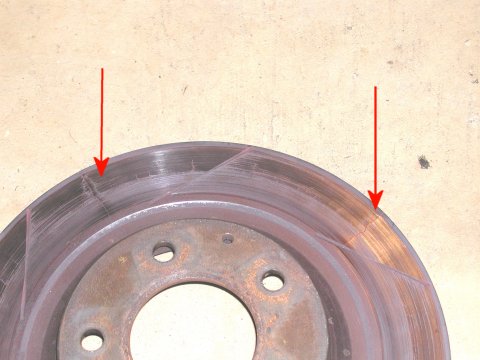

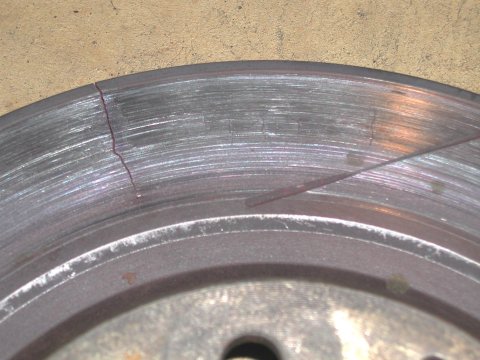

A cracked rear slotted rotor. Two cracks in each rotor!
CHOOSING THE RIGHT KIT
The need for more robust rear brakes is unquestionable when speeds increase
and stickier tires are used but what do you upgrade the rear brakes with?
There simply is virtually nothing available to upgrade too. Mazda, however,
was kind enough to recognize the need for bigger brakes on the 1999 RX-7
so for the RS and RZ models designed a slightly larger rear setup.
The RS/RZ rear rotors are 12.36" X .79" up from 11.57" X .79" for the '93-'95 models.
Lucky for us. Some custom made brackets for Wilwood calipers have been developed
but are neigh on unobtainble these days
not to mention the fact that this modification eliminates the parking brake. This would
make daily driving burdonsome for a multipurpose car such as mine. Pure track car..maybe ok.
My car... not really an option. So the 1999 RS/RZ Mazda brakes it is. To be specific the only difference
between the 1999 RS/RZ rear brakes and the 1993-1995 rear brakes is in the dimensions of the rotor,
namely the diameter and the offset of the caliper. The rotors are the same thickness and
use the same caliper design principle.

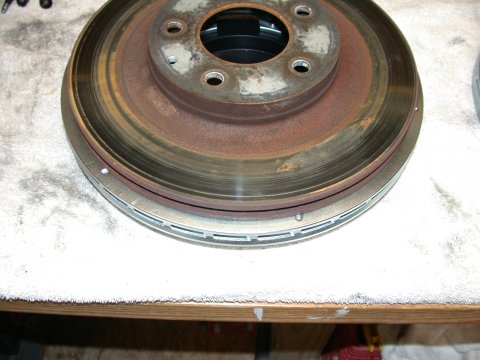

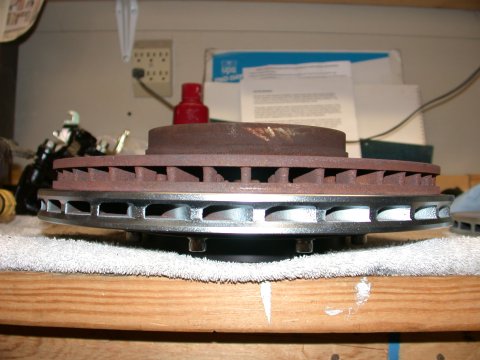

Note the difference between an '93-'95 rotor and the dimensions of a '99 RS/RZ rotor.
PRECISION BRAKES TWO PIECE REAR ROTORS

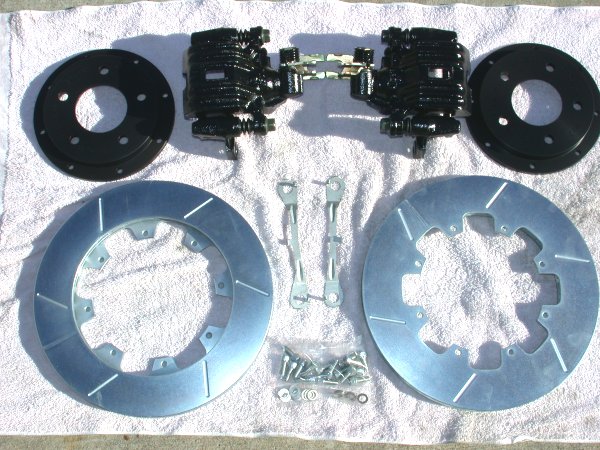

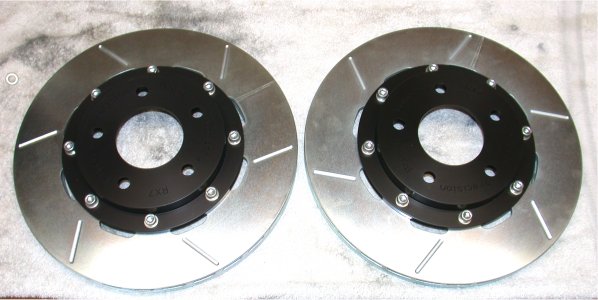

Precision Brake 2 piece rear rotors assembled
Lets talk about the rotors in my "kit." The 1999 RS/RZ factory rotors
are a one piece unit. Over the course of late 2002 and 2003 a two piece rotor was developed
by Precision Brakes Company.
Dimensionally the two piece rotors are identical to the one peice
Mazda rotors. However the two peice units use anodized aluminum hats (I chose black to
match my front AP brakes)
and the rotor section uses curved vanes vs. straight vanes for more efficient cooling.
|
So the two piece units are both
lighter and at the same time cool better without the sacrifice of reduced thermal mass.
The only shortcoming at this point is in the bolting
mechanism. The Precision brake rotors use a simple allen bolt with a threadlocking compound
threaded into the rotor itself where a throughbolt design using a bolt and locknut
would have been preferred.
Then there is the queston of cost. To some inital cost might seem too steep,
the two piece units being about $40 more per rotor than the one piece Mazda rotors.
However, when come replacement time the
rotors for the two piece units are cheaper **AND** more easily sourced - the '99 rotors
must be imported from Japan.
|
Precison Brakes aluminum hat - love the "Type-R" text?
|
CALIPERS
As with all Mazda factory parts the install for these calipers couldn't have been any easier.
In fact my old calipers were in serious need of some TLC so replacement with the '99 calipers
was very timely and saved me a rebuild. After several years of track
abuse, the seals were toast, the sliders were worn, and the once shiney yellow caliper paint
was now well and truely cooked on my old calipers. And if you think the off the shelf caliper
paint will last on the track just take a look at my calipers! These were painted about a year ago.

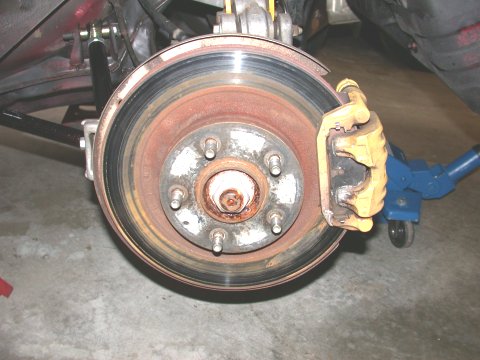

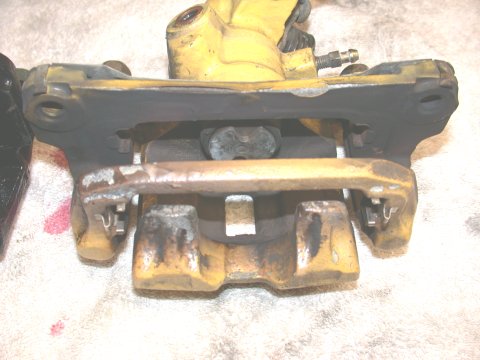

My original tired rear brakes. A well and truely roasted caliper.
As noted above there is no difference in the caliper design with the exception of longer
mounting tabs on the '99 RS/RZ caliper to accommodate the larger diameter rotor of the
'99 brake system. The calipers (Part #'s: 1 F1Z4-26-98Z Kit, Caliper Rear Right 34.9mm Bore 99,
1 F1Z4-26-99Z Kit, Caliper Rear Left 34.9mm Bore 99) are not cheap and must be sourced from
Japan but given the wear on my current units I didn't find the cost all that unpalatable.
The '99 RS/RZ calipers use the same brake pad size as the US
spec '93-'95 calipers but I believe the '99 pads use a different compound. No problem
as most of us don't use the OE pads anymore anyway. I did in the interest of consistency
paint the rear calipers black to match the fronts. I used the rattle can high temp brake caliper
paint (Krylon) but as with my yellow calipers of old I don't expect it to last. Of course masking all rubber
and the coated portions of the caliper assembly from the paint overspray.
The only things needed to make the '99 calipers ready for installation is to swap the pad
spring retainers and in my case swap the Speedbleeders over.

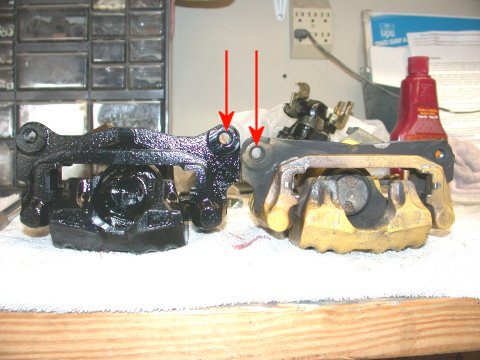

A nice new shiney '99 caliper. Note the difference in mounting tab height: '99 caliper left - '93 caliper right
INSTALLATION
Not much to the installation really
Remove the wheel
If you still have the brake rotor screws in place,
remove them - an impact driver works wonders.
Release parking brake
Slide out the parking brake cable retainer
spring and disconnect the parking brake cable.
Remove the brake pads by loosening the
top caliper bolt and removing lower caliper bolt. Swing caliper up and drop
out the pads.
Reinsert lower caliper bolt (makes handling the caliper
later easier)
Loosen caliper to hub bolts but don't remove just yet.
Disconnect brake line.
Ok now remove the caliper mounting bolts and remove the
caliper. The less time the brake line is disconnected the better.
remove the brake rotor.
With tin snips trim the lip off the
splash shield if you still have one.
Install the '99 rotor assembly making sure the
direction of rotation is correct. Looking at the top of the rotor:
slots pointing forward, vanes angled rearward.
Before installing '99 RS/RZ caliper transfer
the brake pad retailer springs.
Bolt on the '99 caliper remembering to use the new shim.
Reconnect the brake line using new copper washers.
Reinstall brake pads and parking brake cable in reverse
order of removal (love descriptions in the FSM like this don't ya?).
|

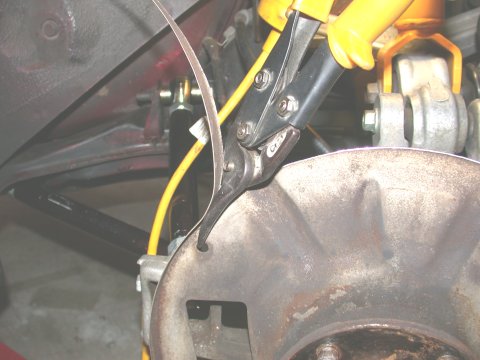

Snip flange off splash shield to clear bigger rotor.
|
BEHOLD THE FINISHED PRODUCT

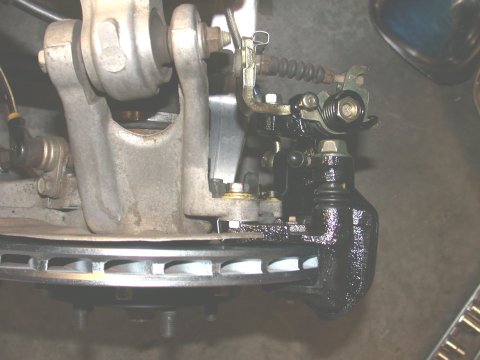

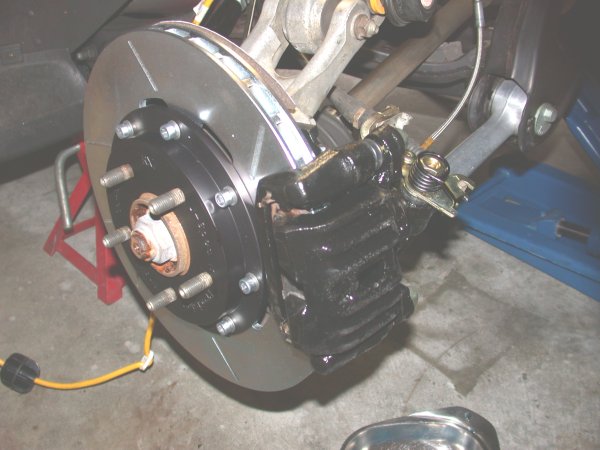

The finished installation. Note slots point forward and vanes
point rearward when looking at the top of the rotor.

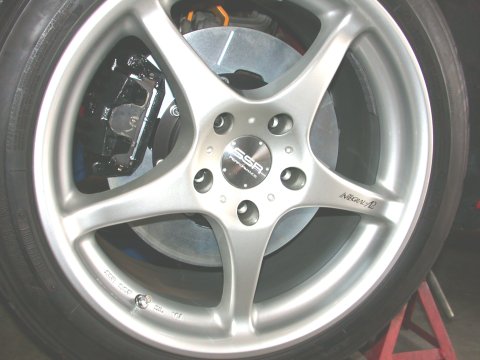

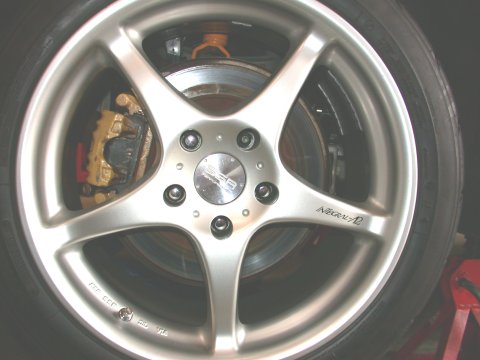

Before and after - gone are the Bling Bling yellow calipers.
Low key and stealthy brakes now.
